Low Maintenance, Durable Construction, Easy Installation
Low cost of ownership
Description
Your Process. Anywhere. Always.

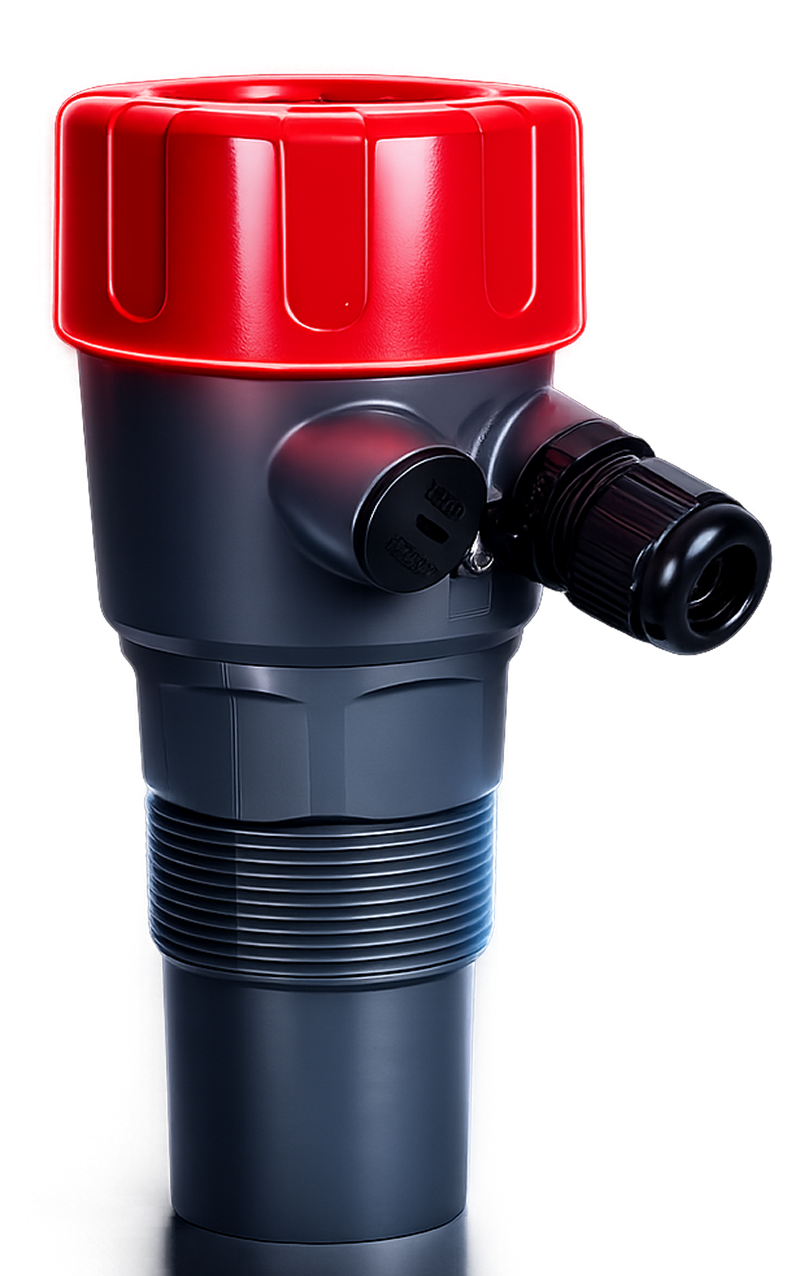

The CONNEX 3D™ is FLO-CORP's patent-pending cellular process monitor — the industry's first to communicate to field and host devices via RS-485 while transmitting wirelessly through cellular data to a cloud-based server. From tank farms to remote pump stations, the CONNEX 3D puts live process data on any internet-connected device, with no third-party web portals or expensive monthly monitoring fees.
The system accepts standard analog inputs (4–20mA) or RS-485 Modbus inputs and connects to a full ecosystem of CONNEX 3D modules — including display, relay expansion, data logger, Ethernet, and cellular. All units are pre-engineered, pre-wired, and pre-configured at the factory to your specifications, ensuring fast installation and minimal setup.
A built-in data logger stores up to 32,000 samples for field retrieval or single-upload cellular transmission — so even when connectivity is lost, your measurement data isn't. The CONNEX 3D online portal lets you filter tanks by product, check network and battery status, view inventory history, manage alarm information, and add users across your organisation. Alarms are delivered via SMS and email using pre-programmed setpoints. An optional bright 6-digit LED display is available for field or panel mounting.
Available in DIN rail mount, stand-alone, or NEMA 4X enclosure configurations. Two cellular module options are offered: CD3D-ATT for AT&T and T-Mobile networks, and CD3D-EV3 for Verizon and Sprint networks.
specifications
Cellular monitoring without compromise
-
Performance
Network Performance HSPAEV-DO rev A
Frequency Bands 3G: 850/900/1700; 2G: 850/900/1800/1900800/1900
TCP/IP Protocols FTP, SMTP, TCP, UDPFTP, SMTP, TCP, UDP
Carrier ATT, T-Mobile, Verizon, Sprint
-
Physical
Enclosure Options DIN Rail Mount; Stand Alone; NEMA 4X Enclosure
Data Logger Up to 32,000 samples
Display (optional) Bright 6-digit LED, field or panel mount
-
Electrical
Input Power 3.3V – 5VDC3.3V – 5VDC
Power Draw (sleep) 19mA22mA
Power Draw (idle) 28mA34mA
Power Draw (max) 397mA423mA
-
Pressure Ratings
Operating Temperature CD3D-ATT: -35° to 185°F; CD3D-EV3: -40° to 185°F
Storage Temperature -40° to 185°F
Humidity 20% to 90% RH, non-condensing
EMC Compliance FCC Part 15 Class B
Certifications
Cellular monitoring without compromise
-
Five-Year Warranty
FLO-CORP's industry-leading warranty. The only manufacturer to offer this guarantee on all products.
-
Pre-Calibrated
Every unit is factory calibrated and verified for your specified application before shipment.
-
NPT Compliant
We don’t patch problems. We solve them at the root and build systems that fuel real, repeatable growth.
-
Quality Verified
Tested and verified by FLO-CORP's engineering team to operate as specified from day one.
-
Multi-Unit Output
Available in five different signal units to ensure best resolution for your application.
-
Calibration Available
FLO-CORP offers professional re-calibration services to maintain accuracy throughout the product's service life.
Similar products
Built for the toughest environments
-

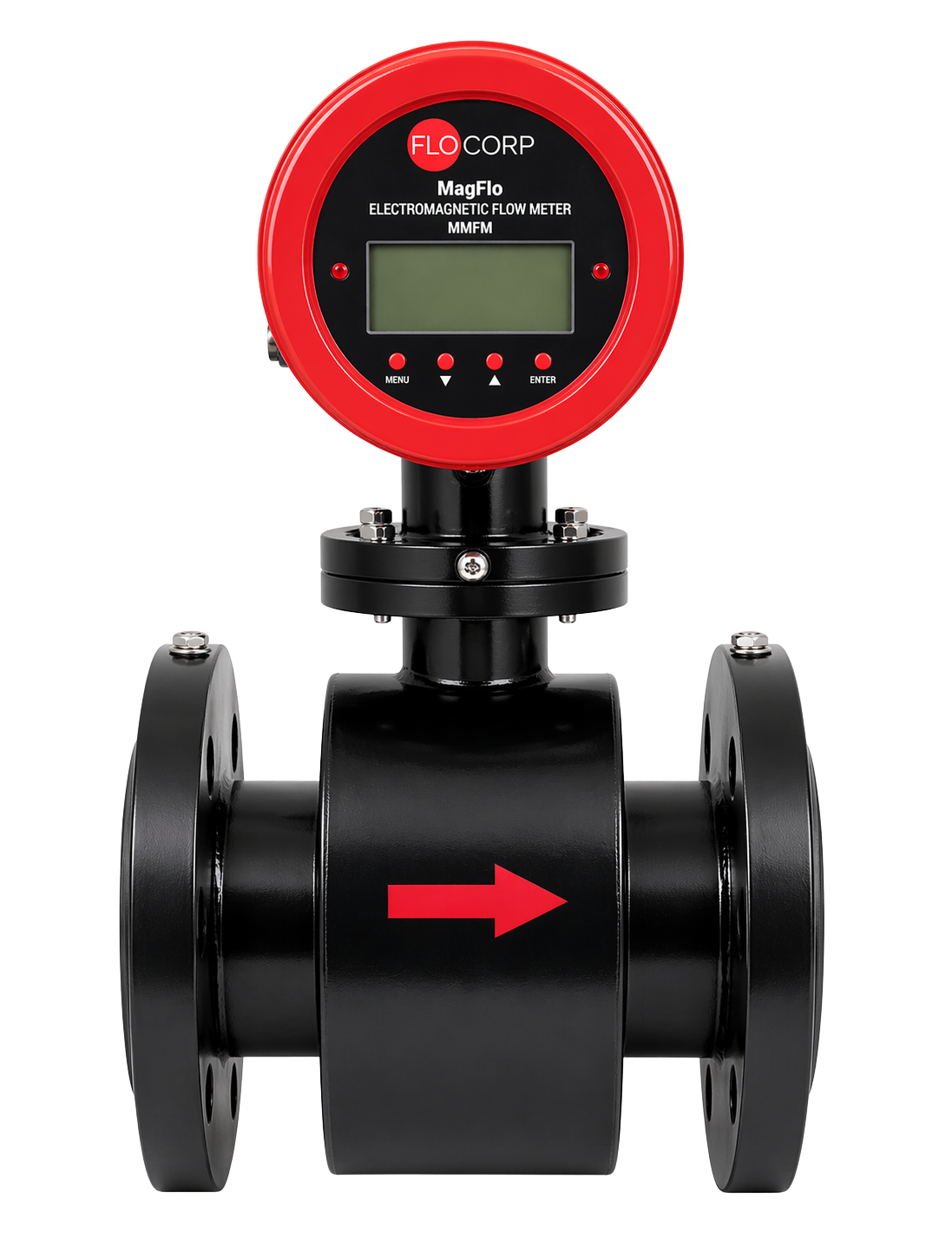

MagFlo™ MMFM Magnetic Flow Meter
Magnetic Flow Meter
A full-bore electromagnetic flow meter built for demanding liquid process applications across a wide range of industries.
-

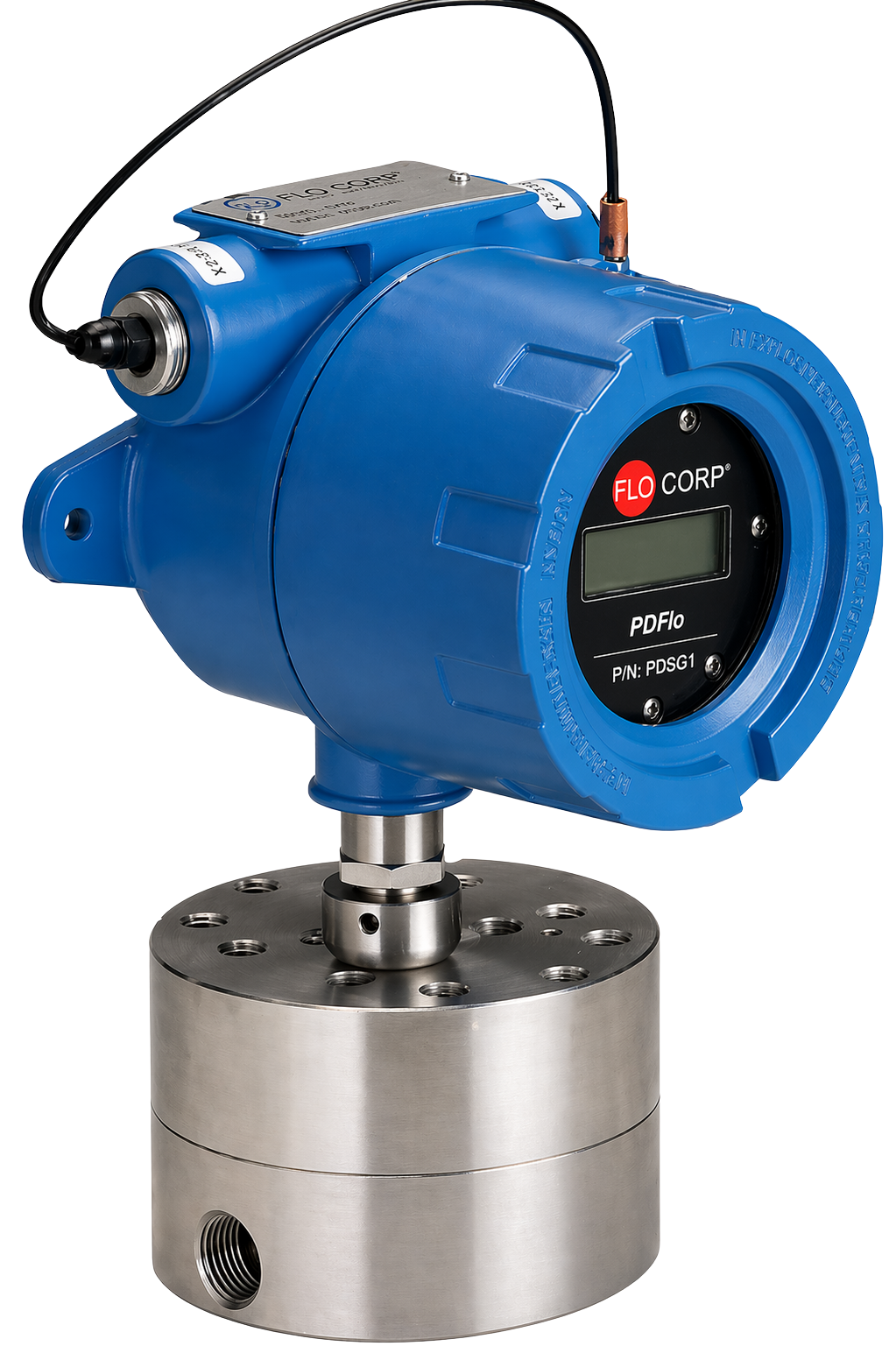

PDFlo™ PDSG1 Positive Displacement Spur Gear Flow Meter
