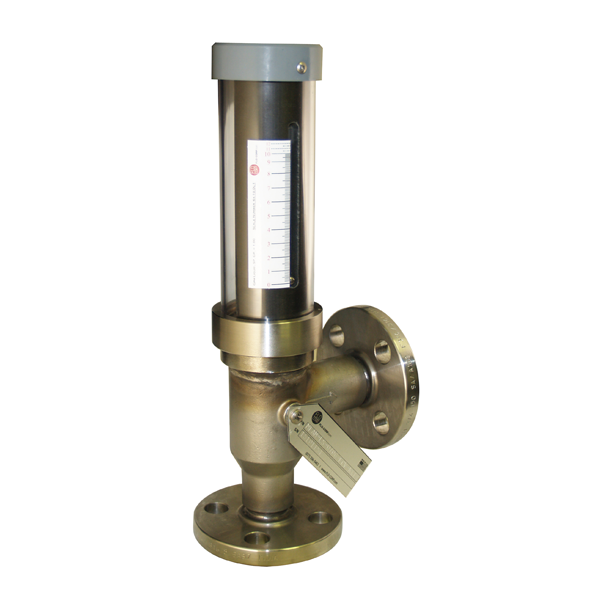

The FLO-CORP MEMFlo™ MFAM Volumetric VA Flow Meter is the ideal measurement solution for high pressures, high temperatures, steam, dirty fluids, and harsh environments.
Part Numbers: MFAM, MFAM-LB-0906-TCB-N, MFAM-LB-0906-TCG-N, MFAM-LB-1712-TCB-N, MFAM-LB-1712-TCG-N, MFAM-LS-0906-TCB-N, MFAM-LS-0906-TCG-N, MFAM-LS-1712-TCB-N, MFAM-LS-1712-TCG-N
Replaces Part Numbers: 6ABE__23CLB, 6ABE__23CLG, 12BSE__120CLB, 12ABE__120CLG, 6ASE__23CLB, 6ASE__23CLG, 12ASE__120CLB, 12ASE__120CLG
MEMFlo™ MFAM All Metal Flow Meters are simple, accurate, meters for use in a wide range of industrial liquid and gas applications. These meters have an excellent tolerance to suspended solids and measure flow to one percent accuracy. With an all metal design, these meters are ideal for high pressures, high temperatures, steam, dirty fluids, and harsh service environments. MFAM All Metal Flow Meters use an internal magnet to carry an external indicator in a non-wetted enclosure. And they can be supplied with the MFT2™ 2-Wire Transmitters for flow rate and total. Additionally, these meters can be supplied with a high temperature indicator option for service up to 600ºF.
BENEFITS
Durable: Rugged design with no springs, cams or seals to wear out
Saves Money: Time-tested design maximizes product life
Saves Time: Disassembles in less than a minute without removing the meter from the pipeline
Easy Installation: Requires no straight runs of pipe
Maximum Accuracy: Specifically calibrated for customer’s application
Warranty: Five-year warranty available
Specification Summary
Pipe Sizes: 1/2″ – 4″
Flow Capacities: 0.80 thru 500 GPM liquids, 10.2 thru 5750 SCFM gases.
Max. Service Conditions: Varies by model; up to 1000 psig @ 70°F; up to 600°F at reduced pressure
Compatible Products
MFT2 2-Wire Flow Transmitter // MFFS3 Universal Single or Dual Flow Switch System // DCX2 Digital Process Meter // DXM1 Relay Expansion Module // CD3D Flexible Process Meter
Installation Type | In line |
---|---|
Medium | Liquid & Gas |
Product Type | Meters |
Industries | Chemical & Petrochemical, Environmental Water & Wastewater, Iron, Steel & Metal, Oil & Gas, Original Equipment Manufacturers, Pulp & Paper, Renewable Energy |
Part Number | MFAM, MFAM-LB-0906-TCB-N, MFAM-LB-0906-TCG-N, MFAM-LB-1712-TCB-N, MFAM-LB-1712-TCG-N, MFAM-LS-0906-TCB-N, MFAM-LS-0906-TCG-N, MFAM-LS-1712-TCB-N, MFAM-LS-1712-TCG-N |
Replaces Part Number | 12ABE__120CLG, 12ASE__120CLB, 12ASE__120CLG, 12BSE__120CLB, 6ABE__23CLB, 6ABE__23CLG, 6ASE__23CLB, 6ASE__23CLG |
