Product Information

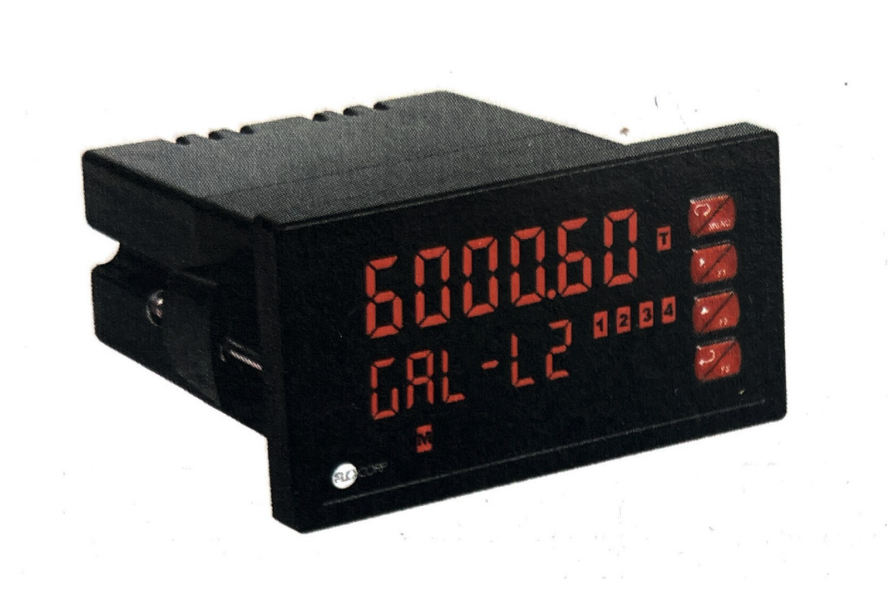

FLO-CORP’s patent pending CONNEX 3D™ CD3D Flexible Process Meter is the industry’s first digital display with RS485 serial remote I/O. Featuring ethernet and auxiliary relays, it provides users the flexibility to configure any analog input into a distributed or integral monitoring and control system.
Part Number: CD3D, CD3D-ID-1-NINE-DLNX-NCNS-OE
Replaces Part Number: DCX2-T-F-A-N4, DCX2ET-F-D-N4, DCX2N-T-F-A-N4, DCX2NT-F-D-N4
CONNEX 3D™ flexible process monitor provides sensors/field device connectivity from standard analog inputs to RS-485 Modbus communications inputs that are wired to the CONNEX 3D CPU module and communicated to a host of devices; ie: CONNEX 3D display module, eXmod relay expansion module, CONNEX 3D data logger, CONNEX 3D Radio Module, CONNEX 3D TCP/IP Ethernet Module, CONNEX 3D CELLULAR module. With the selection of modules, the CONNEX 3D provides the user flexibility to configure any analog or digital input into a stand-alone or distributed monitoring and control system. The system communicates over a standard RS-485 Modbus™ data highway for remote monitoring through PC communications port (USB) or TCP/IP Ethernet or Cellular or Radio and local monitoring through the CONNEX 3D Display.
BENEFITS
Seamlessly adaptable to other analog or RS-485 transmitting devices: Features RS485 Modbus serial remote I/O
Easily monitor applications: Wired or wireless monitoring option via local or remote field display
Easy Installation and reduced cost of installation: Pre-calibrated for customer’s application
Provides field and plant operation vital data : RS-485 Field or Panel Display Interface
Warranty Five-year warranty available
Compatible Products
CD3D Cellular Module // MFAM Volumetric VA Flow Meter // MFTV Volumetric VA Flow Meter // MFVC Volumetric VA Flow Meter // MFHM Volumetric VA High Pressure Flow Meter // LTT1 Guided Wave Radar Level Transmitter // LTT1-2G 2nd Generation Radar Level Transmitter // LTTA Non-Contact Radar Level Transmitter // LTRP Ultrasonic Level Transmitter // LTRE Ultrasonic Level Transmitter
| Monitor Type | Local and/or Remote |
|---|---|
| Product Type | Process |
| Industries | Aerospace, Agriculture, Chemical & Petrochemical, Environmental Water & Wastewater, Food & Beverage, Government Agencies, Iron, Steel & Metal, Life Sciences, Minerals & Mining, Oil & Gas, Original Equipment Manufacturers, Power & Energy, Pulp & Paper, Refined Products, Renewable Energy |
| Part Number | CD3D, CD3D-ID-1-NINE-DLNX-NCNS-OE |
| Replaces Part Number | DCX2-T-F-A-N4, DCX2ET-F-D-N4, DCX2N-T-F-A-N4, DCX2NT-F-D-N4 |
Related products
MEMFlo™ MFVC Volumetric VA Flow Meter
Relay and Pump Module (DXM1): CONNEX COMPATIBLE
The Relay and Pump Control Module for the CONNEX 3D™ Flexible Process Meter features a relay setpoint for rate or total capabilities.
Digital Display Module (CDDM): CONNEX COMPATIBLE
The Digital Display Module for the CONNEX 3D™ Flexible Meter can be mounted remotely or integral (or both) to the CONNEX 3D™ process meter enclosure.
